Bambu Lab

Build Volume (W*D*H)
Single Nozzle Printing: 325*320*325 mm³
Dual Nozzle Printing: 300*320*325 mm³
Total Volume for Two Nozzles: 350*320*325 mm³
Chassis & Shell: Aluminum, Steel, Plastic and Glass
Laser Safety Windows: Equipped on Laser Edition, normal H2D can upgrade through Laser Upgrade Kit
Air Assist Pump: Equipped on Laser Edition, normal H2D can upgrade through Laser Upgrade Kit
Physical Dimensions
Physical Dimensions: 492*514*626 mm³
Net Weight: 31 kg
Toolhead: Hotend
All Metal: Extruder Gear
Hardened Steel: Nozzle
Hardened Steel: Max Nozzle Temperature 350 °C
Included Nozzle Diameter: 0.4 mm
Supported Nozzle Diameter: 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm
Filament Diameter: 1.75 mm
Extruder Motor: Bambu Lab High-precision Permanent Magnet Synchronous Motor
Heatbed
Supported Build Plate Type: Textured PEI Plate, Smooth PEI Plate
Max Heatbed Temperature: 120 ℃
Speed
Max Speed of Toolhead
1000 mm/s
Max Acceleration of Toolhead: 20,000 mm/s²
Max Flow for Hotend (Standard Flow Hotend): 40 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)
Max Flow for Hotend (Optional High Flow Hotend)
65 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)
Chamber Temperature Control: Active Chamber Heating
Supported
Max Temperature: 65 °C
Air Purification: Pre-filter Grade G3
HEPA Filter Grade H12
Activated Carbon Filter Type: Granulated Coconut Shell
Cooling: Part Cooling Fan: Closed Loop Control
Auxiliary Part Cooling Fan: Closed Loop Control
Chamber Heat Circulation Fan: Closed Loop Control
Cooling Fan for Hotend: Closed Loop Control
Main Control Board Fan: Closed Loop Control
Chamber Exhaust Fan: Closed Loop Control
Supported Filament Type: PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, Carbon/Glass Fiber Reinforced PLA, PETG, PA, PET, PC, ABS, ASA, PPA-CF/GF, PPS, PPS-CF/GF
Supported
Sensor
Live View Camera
Built-in; 1920*1080
Nozzle Camera
Built-in; 1920*1080
BirdsEye Camera
Built-in; 3264*2448 （Equipped with Laser Edition)
Toolhead Camera: Built-in; 1920*1080
Door Sensor: Supported
Filament Run Out Sensor: Supported
Filament Tangle Sensor: Supported
Filament Odometry: Supported with AMS
Power Loss Recovery: Supported
Electrical Requirements
Voltage :100-120 VAC / 200-240 VAC, 50/60 Hz
Max Power* 2200 W@220 V / 1320 W@110 V
10 °C–30 °C
Electronics: Touchscreen
5-inch 720*1280 Touchscreen
Storage: Built-in 8 GB EMMC and USB Port
Control Interface: Touchscreen, mobile App, PC App
Neural Processing Unit: 2 TOPS
Software: Slicer & Software
Bambu Studio, Bambu Suite, Bambu Handy
Supports third-party slicers which export standard G-code, such as Super Slicer, PrusaSlicer and Cura, but certain advanced features may not be supported.
Supported Operating System: MacOS, Windows
Wi-Fi: Operating Frequency
2412-2472 MHz, 5150-5850 MHz (FCC/CE)
2400-2483.5 MHz, 5150-5850 MHz (SRRC)
Wi-Fi Transmitter Power (EIRP): 2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5 GHz Band1/2: <23 dBm (FCC/CE/SRRC/MIC)
5 GHz Band3: <30 dBm (CE); <24 dBm (FCC)
5 GHz Band4: <23 dBm (FCC/SRRC); <14 dBm (CE)
Wi-Fi Protocol: IEEE 802.11 a/b/g/n
10W & 40W Laser Module
Laser Type: Semiconductor Laser
Laser Wavelength: Engraving Laser: 455 nm ± 5 nm Blue Light
Height Measuring Laser: 850 nm ± 5 nm Infrared Light
Laser Power: 10 W ± 1 W; 40 W ± 2 W
Laser Spot Dimension: 10W: 0.03 mm * 0.14 mm; 40W: 0.14 mm * 0.2 mm
Working Temperature: 0 °C–35 °C
Max Engraving Speed: 10W: 400 mm/s; 40W: 1000 mm/s
Max Cutting Thickness: 10W: 5 mm; 40W: 15mm (Basswood Plywood)
Laser Safety Class for Laser Module: Class 4
Overall Laser Safety Class*: Class 1
Engraving Area: 10W: 310 mm * 270 mm; 40W: 310 mm * 250 mm
XY Positioning Accuracy: < 0.3 mm
Z Height Measuring Method: Micro Lidar
Z Height Measuring Accuracy: ± 0.1 mm
Flame Detection: Supported
Temperature Detection: Supported
Door Sensor: Supported
Laser Module Installation Detection: Supported
Safety Key: Included
Ventilation Pipe Adapter Outer Diameter: 100 mm
Supported Material Type: Wood, rubber, metal sheet, leather, dark acrylic, stone, and more
Cutting Module: Cutting Area 300*285 mm²
Drawing Area 300*255 mm²
Supported Pen Diameter 10.5 mm-12.5 mm
Cutting Mat Type: LightGrip and StrongGrip Cutting Mats
Blade Type: 45°*0.35 mm
Blade Pressure Range: 50 gf-600 gf
Max Cutting Thickness: 0.5 mm
Blade and Pen Recognition: Supported
Cutting Mat Type Detection: Supported
Supported Image Type: Bitmap and Vector Images
Supported Material Type: Paper, vinyl, leather, and more

Build Volume (W*D*H)
Single Nozzle Printing: 325*320*325 mm³
Dual Nozzle Printing: 300*320*325 mm³
Total Volume for Two Nozzles: 350*320*325 mm³
Chassis & Shell: Aluminum, Steel, Plastic and Glass
Laser Safety Windows: Equipped on Laser Edition, normal H2D can upgrade through Laser Upgrade Kit
Air Assist Pump: Equipped on Laser Edition, normal H2D can upgrade through Laser Upgrade Kit
Physical Dimensions
Physical Dimensions: 492*514*626 mm³
Net Weight: 31 kg
Toolhead: Hotend
All Metal: Extruder Gear
Hardened Steel: Nozzle
Hardened Steel: Max Nozzle Temperature 350 °C
Included Nozzle Diameter: 0.4 mm
Supported Nozzle Diameter: 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm
Filament Diameter: 1.75 mm
Extruder Motor: Bambu Lab High-precision Permanent Magnet Synchronous Motor
Heatbed
Supported Build Plate Type: Textured PEI Plate, Smooth PEI Plate
Max Heatbed Temperature: 120 ℃
Speed
Max Speed of Toolhead
1000 mm/s
Max Acceleration of Toolhead: 20,000 mm/s²
Max Flow for Hotend (Standard Flow Hotend): 40 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)
Max Flow for Hotend (Optional High Flow Hotend)
65 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)
Chamber Temperature Control: Active Chamber Heating
Supported
Max Temperature: 65 °C
Air Purification: Pre-filter Grade G3
HEPA Filter Grade H12
Activated Carbon Filter Type: Granulated Coconut Shell
Cooling: Part Cooling Fan: Closed Loop Control
Auxiliary Part Cooling Fan: Closed Loop Control
Chamber Heat Circulation Fan: Closed Loop Control
Cooling Fan for Hotend: Closed Loop Control
Main Control Board Fan: Closed Loop Control
Chamber Exhaust Fan: Closed Loop Control
Supported Filament Type: PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, Carbon/Glass Fiber Reinforced PLA, PETG, PA, PET, PC, ABS, ASA, PPA-CF/GF, PPS, PPS-CF/GF
Supported
Sensor
Live View Camera
Built-in; 1920*1080
Nozzle Camera
Built-in; 1920*1080
BirdsEye Camera
Built-in; 3264*2448 （Equipped with Laser Edition)
Toolhead Camera: Built-in; 1920*1080
Door Sensor: Supported
Filament Run Out Sensor: Supported
Filament Tangle Sensor: Supported
Filament Odometry: Supported with AMS
Power Loss Recovery: Supported
Electrical Requirements
Voltage :100-120 VAC / 200-240 VAC, 50/60 Hz
Max Power* 2200 W@220 V / 1320 W@110 V
10 °C–30 °C
Electronics: Touchscreen
5-inch 720*1280 Touchscreen
Storage: Built-in 8 GB EMMC and USB Port
Control Interface: Touchscreen, mobile App, PC App
Neural Processing Unit: 2 TOPS
Software: Slicer & Software
Bambu Studio, Bambu Suite, Bambu Handy
Supports third-party slicers which export standard G-code, such as Super Slicer, PrusaSlicer and Cura, but certain advanced features may not be supported.
Supported Operating System: MacOS, Windows
Wi-Fi: Operating Frequency
2412-2472 MHz, 5150-5850 MHz (FCC/CE)
2400-2483.5 MHz, 5150-5850 MHz (SRRC)
Wi-Fi Transmitter Power (EIRP): 2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5 GHz Band1/2: <23 dBm (FCC/CE/SRRC/MIC)
5 GHz Band3: <30 dBm (CE); <24 dBm (FCC)
5 GHz Band4: <23 dBm (FCC/SRRC); <14 dBm (CE)
Wi-Fi Protocol: IEEE 802.11 a/b/g/n
10W & 40W Laser Module
Laser Type: Semiconductor Laser
Laser Wavelength: Engraving Laser: 455 nm ± 5 nm Blue Light
Height Measuring Laser: 850 nm ± 5 nm Infrared Light
Laser Power: 10 W ± 1 W; 40 W ± 2 W
Laser Spot Dimension: 10W: 0.03 mm * 0.14 mm; 40W: 0.14 mm * 0.2 mm
Working Temperature: 0 °C–35 °C
Max Engraving Speed: 10W: 400 mm/s; 40W: 1000 mm/s
Max Cutting Thickness: 10W: 5 mm; 40W: 15mm (Basswood Plywood)
Laser Safety Class for Laser Module: Class 4
Overall Laser Safety Class*: Class 1
Engraving Area: 10W: 310 mm * 270 mm; 40W: 310 mm * 250 mm
XY Positioning Accuracy: < 0.3 mm
Z Height Measuring Method: Micro Lidar
Z Height Measuring Accuracy: ± 0.1 mm
Flame Detection: Supported
Temperature Detection: Supported
Door Sensor: Supported
Laser Module Installation Detection: Supported
Safety Key: Included
Ventilation Pipe Adapter Outer Diameter: 100 mm
Supported Material Type: Wood, rubber, metal sheet, leather, dark acrylic, stone, and more
Cutting Module: Cutting Area 300*285 mm²
Drawing Area 300*255 mm²
Supported Pen Diameter 10.5 mm-12.5 mm
Cutting Mat Type: LightGrip and StrongGrip Cutting Mats
Blade Type: 45°*0.35 mm
Blade Pressure Range: 50 gf-600 gf
Max Cutting Thickness: 0.5 mm
Blade and Pen Recognition: Supported
Cutting Mat Type Detection: Supported
Supported Image Type: Bitmap and Vector Images
Supported Material Type: Paper, vinyl, leather, and more

Product Features
Multi Color & Multi Material Capability
Proven reliability trusted by professionals
High quality printing with 7 μm Lidar Resolution
High speed CoreXY with 20000 mm/s² Acceleration
Dual Auto Bed Leveling
Build Volume (W×D×H) 256 × 256 × 256 mm³*
Nozzle 0.4 mm Hardened Steel Included
Hotend All-Metal
Max Hot End Temperature 300 ℃
Filament Diameter 1.75 mm
Supported Filament
PLA, PETG, TPU, ABS, ASA, PVA, PET
Ideal for PA, PC, Carbon/ Glass Fiber Reinforced Polymer
Build Plate Surface Bambu Textured PEI Plate or Bambu Cool Plate (Pre-installed, Random, Both compatible with Micro Lidar)
Max Build Plate Temperature 110℃@220V, 120℃@110V
Max Speed of Tool Head 500 mm/s
Max Acceleration of Tool Head 20 m/s²
What to Expect from the X1C Combo 3D Printer
Core XY with 20000 mm/s² acceleration
Up to 16 multi-color printing
Dual auto bed leveling
7μm lidar resolution
Spaghetti failure detection
AI inspected first layer
Colors & Beyond
With Bambu Lab Automatic Material System (AMS)，you can now enjoy printing freely in multiple colors and materials.
Vibration Compensation & Extrusion Compensation
The active vibration compensation (XY) algorithm and extrusion compensation guarantees extra smoothness and gets you good prints.
Dual Auto Bed Leveling
Dual Auto Bed Leveling system checks for increased reliability.The lidar and analog force sensors crosscheck for an extra layer of redundancy in bed leveling.
Al inspected first layer
Tired of waiting out that first layer? The lidar sensor can check your first layer so that you can get back to doing...anything else..
Spaghetti detection
Our Al keeps an eye out for Spaghetti monsters, so you can sleep easy in the knowledge that your printer is safe from this scourge.

Build Volume(WxDxH): 256 x 256 x 256 mm³*
Shell: Enclosed (Plastic & Glass)
Hot End: All-Metal
Nozzle: 0.4 mm Stainless Steel Included
Max Hot End Temperature: 300 ℃
Nozzle Diameter : 0.4 mm (Included)
0.2 mm, 0.6 mm, 0.8 mm (Optional)
Build Plate Surface Compatibility: Bambu Textured PEI Plate, Bambu Cool Plate, Bambu Engineering Plate, Bambu High Temperature Plate
Max Build Plate Temperature: 100℃
Max Speed of Tool Head: 500 mm/s
Max Acceleration of Tool Head: 20 m/s²
Control Board Fan: Closed Loop Control
Chamber Temperature Regulator Fan: Closed Loop Control
Auxiliary Part Cooling Fan: Closed Loop Control
Air Filter: Activated Carbon Filter
Supported Filament: Ideal: PLA, PETG, TPU, PVA, PET, ABS, ASA
Capable: PA, PC
Chamber Monitoring Camera: Low Rate Camera 1280 x 720/0.5fps
Timelapse Supported
Filament Run Out Sensor: Yes
Physical Dimensions: P1S：389 * 389 * 458 mm³,
P1S Combo Package size 485 × 480 × 585 mm³,
Electrical Requirements: 100-240 VAC, 50/60 Hz, 1000 W @220 V, 350W@110V

Build Dimensions 256 x 256 x 256 mm³
Materials PLA, PETG, TPU, ABS , ASA , PVA, PET, PA and PC
Connectivity Wi-Fi, Bambu-Bus
Technology Fused Filament Fabrication (FFF)
Dimensions 389 x 389 x 458 mm³ (Printer)
Weight (KG) 12.95

CoreXY up to 20000 mm/s² Acceleration
The P1 series inherits the proven kinematics and motion control system of the Bambu Lab Flagship printer. It prints with a top speed of 500 mm/s, the acceleration from zero to 500 mm/s takes just 0.025 seconds.
Vibration Compensation & Pressure Advance
The active vibration compensation (XY) algorithm and pressure advance guarantees extra smoothness and gets you good prints.

Direct-drive Extruder
With the design that the motor is directly connected to the extruder, P1 series has better control on the extrusion and retraction of flexible filaments. Precise and consistent extrusion for smooth and no-blur prints.

Product Features

Full-auto Calibration
Multi-Color Printing (Combo Version)
Active Flow Rate Compensation
1-Clip Quick Swap Nozzle
Active Motor Noise Cancelling
256*256*256 mm³ Build Volume
Product Features

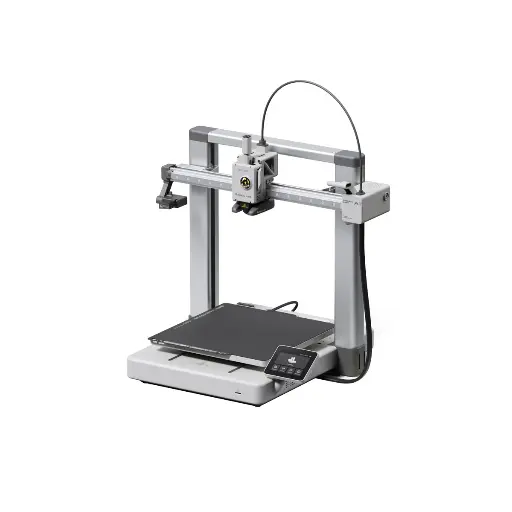

Goodbye to Tedious Manual Calibration And Tuning
A1 handles various calibrations all by itself. It meticulously calibrates the Z-offset, bed-level, vibration resonance and nozzle pressure for EVERY print job, automatically.
No More "Paper Method"
A1 probes the bed with the nozzle to measure the absolute Z-offset. No need to stick a paper as reference.
Auto Tune Both X & Y Resonance Before Every Print

A1 has sensors in toolhead and heatbed. One of the very first bed-slinger printers to run auto resonance calibration on both X & Y axes.
Fully Automated PA (Pressure Advanced) Calibration
First of its kind, A1 runs the nozzle pressure based flow dynamics calibration algorithm. No need to draw any pattern or get any manual pick & match involved, A1 handles Pressure Advanced calibration automatically.
Auto Monitoring And Adjusting The Belts
A1 can check the belt tension automatically through the vibration frequency calibration. If the belt tension is loose the HMS system will notify you to adjust the auto belt tensioner.
Load/Unload Filament With One Touch

No manual setting involved, A1 fully automated the filament load/unload process.
